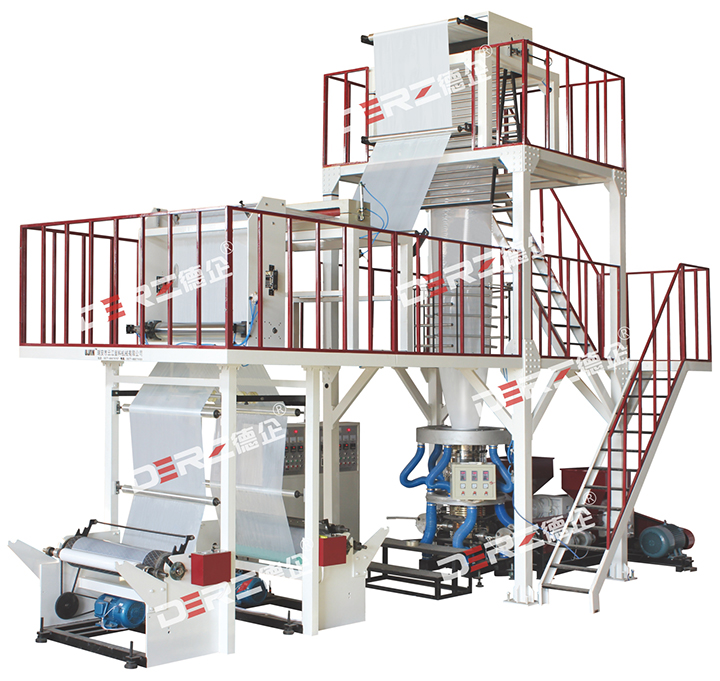

Two-layer Co-extrusion Rotary Die-head Film Blowing Machine
DZSJ-2L 900/1100/1300 Two layer co-extruded rotary head blow molding machine
Main technical parameters:
|
Model |
DZSJ-2L 900 |
DZSJ-2L 1100 |
DZSJ-2L 1300 |
|
Applicable raw material |
LDPE- LLDPE- HDPE- MLDPE |
LDPE- LLDPE- HDPE- MLDPE |
LDPE -LLDPE -HDPE -MLDPE |
|
Product width |
500-800 |
700-1000 |
800-1200 |
|
Product thickness |
0.015-0.08 |
0.015-0.08 |
0.015-0.08 |
|
Maximum extrusion |
50-90kg/hr |
70-110kg/hr |
90-130kg/hr |
|
extruder |
|||
|
Screw diameter |
φ55/55 |
φ60/60 |
φ65/65 |
|
Screw length-diameter ratio |
28:1 |
28:1 |
28:1 |
|
Screw material |
SACM-645/38 CRMOALA |
SACM-645/38 CRMOALA |
SACM-645/38 CRMOALA |
|
Barrel material |
SACM-645/38 CRMOALA |
SACM-645/38 CRMOALA |
SACM-645/38 CRMOALA |
|
Barrel cooling |
180w×4 |
180w×4 |
180w×4 |
|
Main engine power |
15kw/15kw |
18.5kw/18.5kw |
22kw/22kw |
|
Barrel temperature control |
3 |
3 |
3 |
|
Average power consumption |
50 |
60 |
80 |
|
Die head |
|||
|
Die mouth |
φ200 |
φ250 |
φ300 |
|
Temperature control |
3 |
3 |
3 |
|
Wind ring |
φ800 |
φ800 |
φ1000 |
|
Air blower |
3 |
4 |
5.5 |
|
Traction device |
|||
|
Drag roll width |
φ140×900 |
φ160×1100 |
φ160×1300 |
|
Effective suction film width |
800mm |
1000mm |
1200mm |
|
Traction speed |
10-80 |
10-80 |
10-80 |
|
Traction motor power |
1.1 |
1.5 |
1.5 |
|
winder |
|||
|
Winder motor power |
10N.m-2 |
16N.m-2 |
16N.m-2 |
|
Winding speed |
10-80 |
10-80 |
10-80 |
|
Overall dimension |
6.5×2.1×6.3m |
7×2.3×6.5m |
7.2×2.5×7.2m |
Note: All these technical parameters can be varied with customers’ request.
The above specifications, dimensions & design characteristics are subject to change without notice.
OPTIONAL EQUIPMENT：
1) AUTO LOADER
2) CORONA
3) AIR COMPRESSOR
4) MECHANICS SCREEN CHANGER
